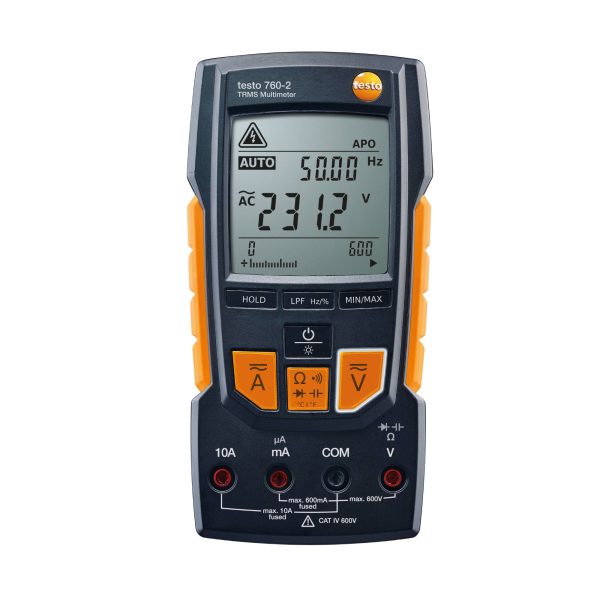

testo 760-2 - Digital multimeter

  • Easy, reliable work thanks to automatic measurement parameter detection
  • Current measurement in the µA range
  • True root mean square measurement – TRMS
  • Low-pass filter for accurate measurement results on frequency converter controlled motors



The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.

Details

Product Description

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.

Delivery Scope

testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K and instruction manual.

Technical Data

Temperature – TC Type K (NiCr-Ni)
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage
Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current
Measuring range 0.1 μA to 10 A
Resolution max. 0.1 μA
Accuracy ± (1.5 % of mv + 5 Digit)
Resistance
Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 nF to 30000 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.1 Hz
Measuring range 0.001 Hz to 30.00 MHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data
Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 1000V; CAT IV 600V
Authorizations CSA

CSA; CE

Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Current probe measurement with adapter yes
Display ligthing yes
Hold yes
MinMax yes
Temperature measurement with adapter yes
True RMS yes
Low-pass filter yes
Duty cycle measurement yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
