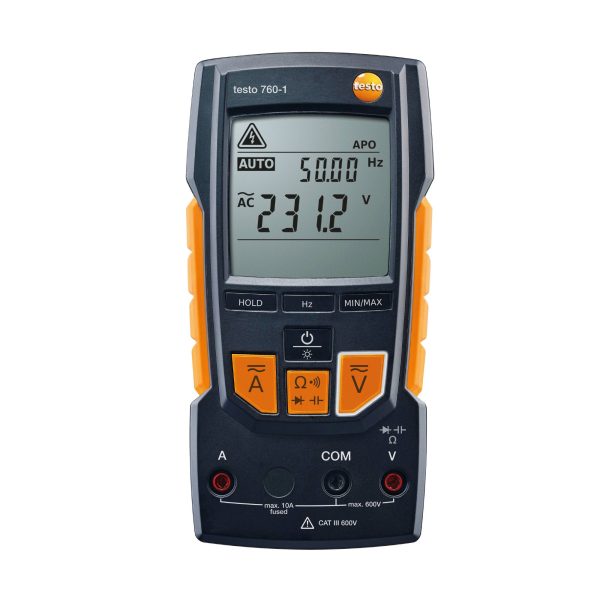

testo 760-1 - Digital multimeter

  • Easy, reliable operation through automatic measurement parameter detection
  • Prevents incorrect settings
  • Suitable for almost all electrical measuring tasks
  • Clear, illuminated display



No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don’t need to make any adjustments – and you can’t make any mistakes.

Details

Product Description

When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability.In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.

Delivery Scope

testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010) and instruction manual.

Technical Data

DC voltage
Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage
Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current
Measuring range 0.1 mA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current
Measuring range 0.1 mA to 10 A
Resolution max. 0.1 mA
Accuracy ± (1.0 % of mv + 3 Digit)
Resistance
Resolution max. 0.1 Ohm
Measuring range 0.1 to 40.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 nF to 100 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.001 Hz
Measuring range 0.001 Hz to 512.0 kHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data
Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 2 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 600V; CAT IV 300V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
Display (counts) 4,000
Autom. measurement parameter detection yes
